The Bulgarian master tool brand

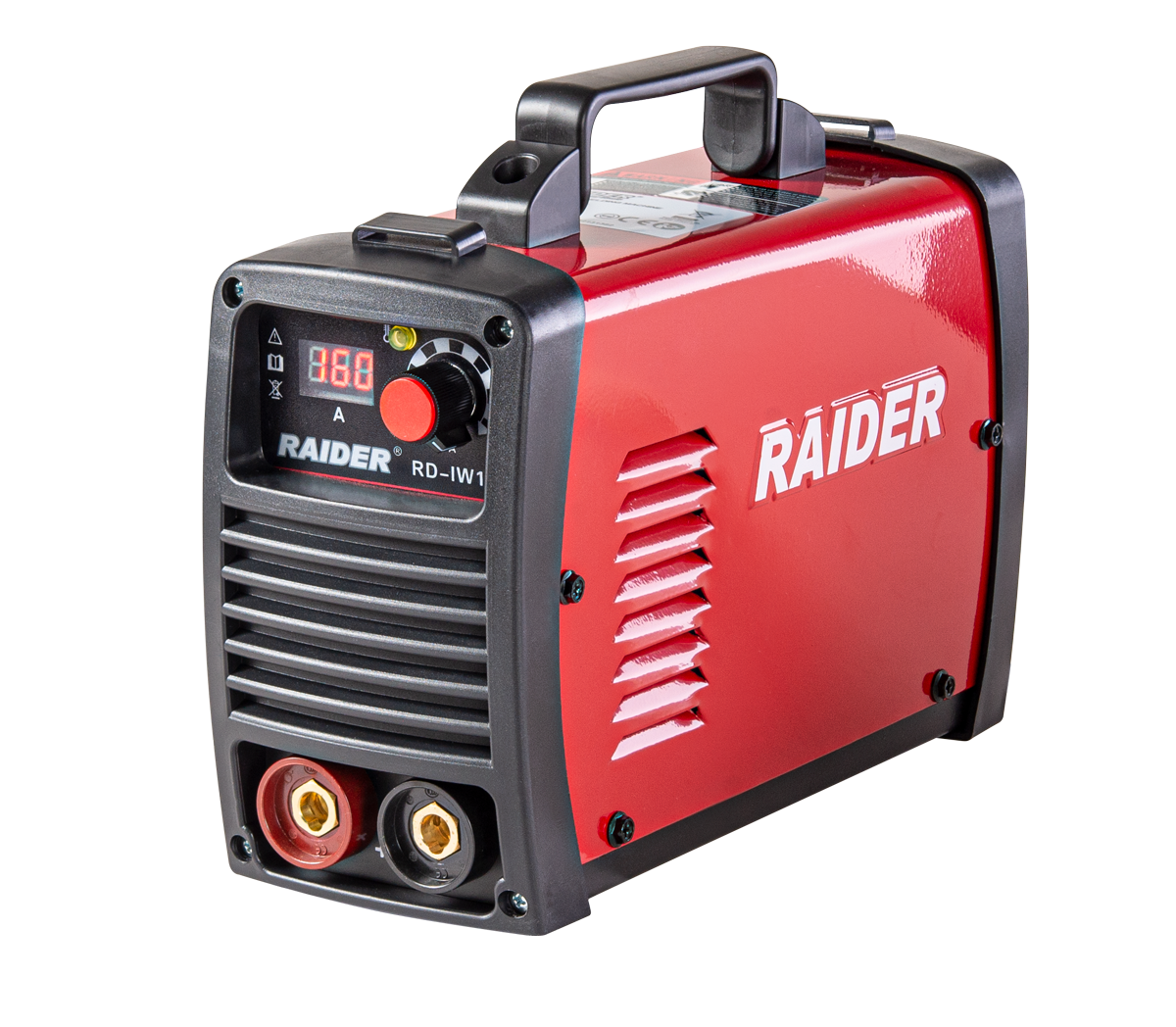

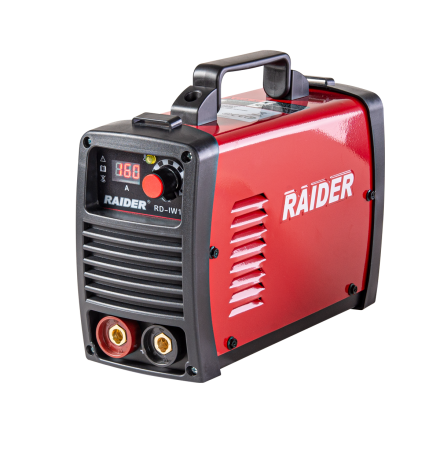

Inverter Welding Machine

Raider RD-IW180

Art. № 077213
  • Power supply
  • Output current range
  • Voltage
  • Power supply
  • Output current range
  • Voltage

Description

  • On / Off switch
  • Overload indicator
  • Welding current adjustment
  • LCD screen



Technical specifications



Rated Voltage / Frequency, V / Hz: 230 / 50
Rated Input Current, kVA: 4.9
Output Current, A: 20 - 160
Electrode Size, mm: 1.6 - 3.25
No- load Voltage, V: 65
Rated Voltage, V: 26.5
Duty Cycle: 60%
Efficiency: 85%
Power Factor: 0.93
Isolation Protection Class: F
Housing Protection Grade: IP21
Gross Weight, kg: 5.300
Net Weight, kg: 4.600
Dimensions, mm: 310 x 230 x 200 mm
