The Bulgarian master tool brand

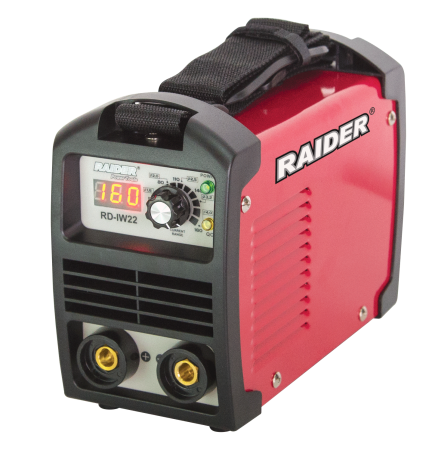

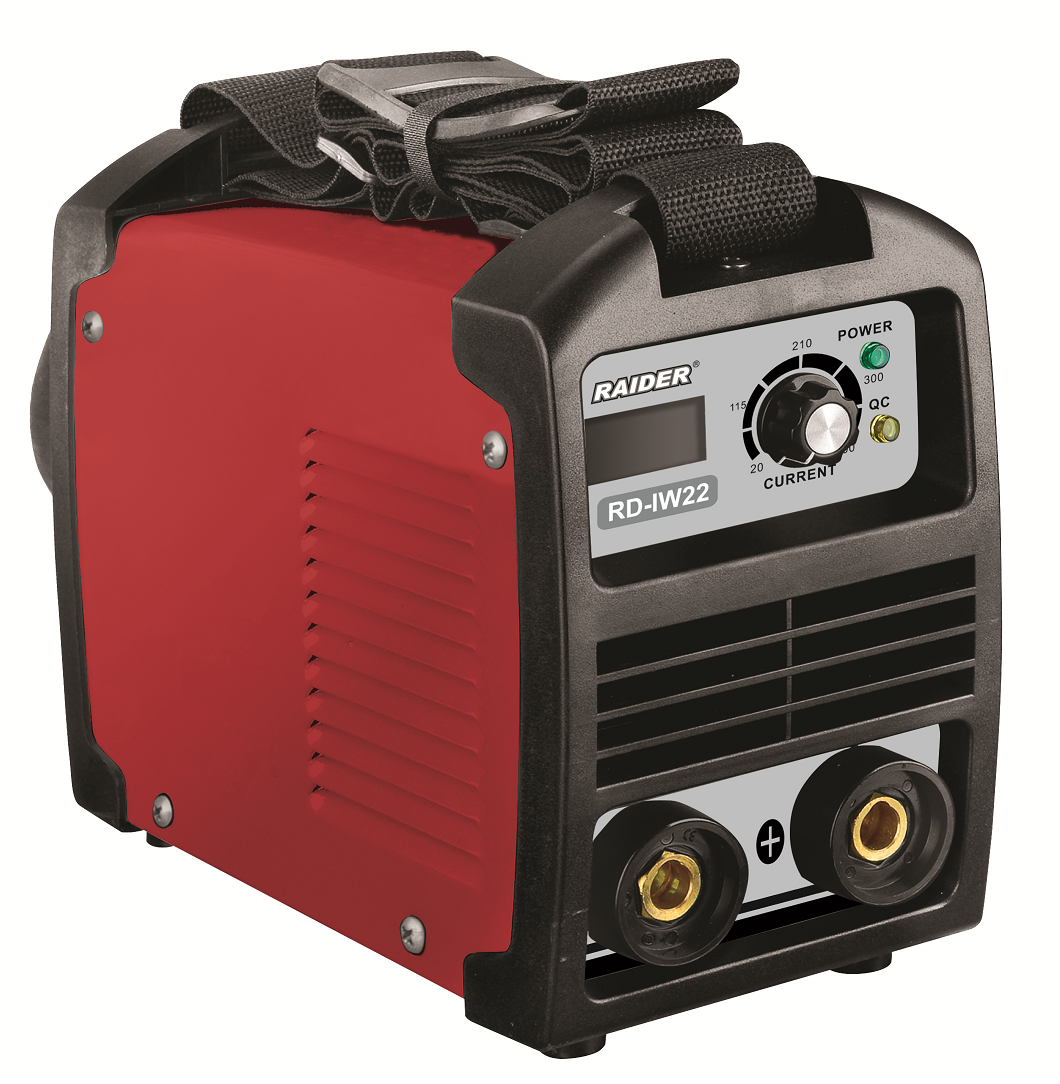

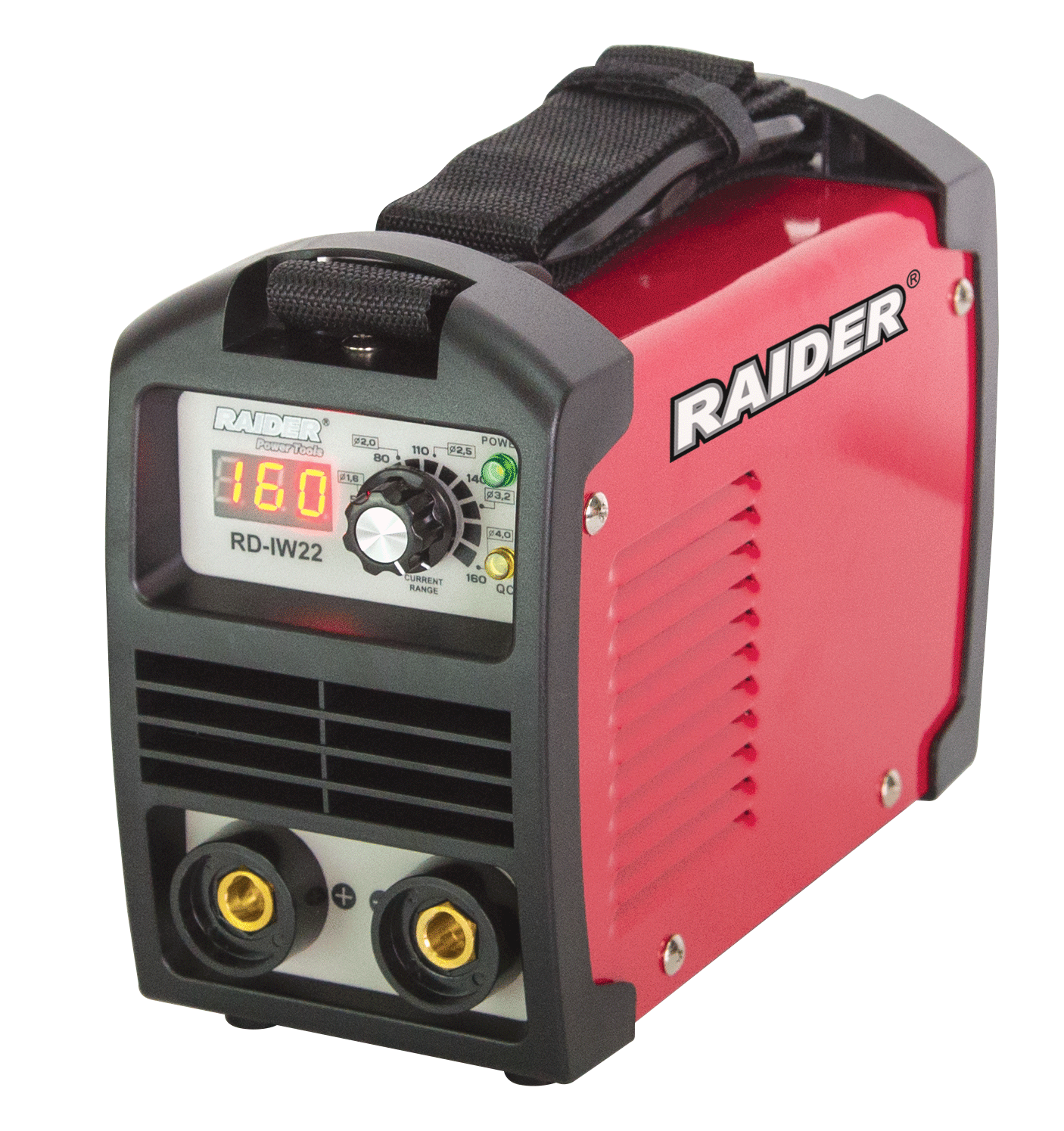

Inverter Welding Machine

Raider RD-IW22

Art. № 077207

1. Cable with pinch table
2. Cable with electrical holder
3. Welding mask
4. Chuck – brush

  • Power supply
  • Usable electrodes diameter
  • Output current range
  • Power supply
  • Usable electrodes diameter
  • Output current range

Description

  • Rated voltage: 230 V
  • Rated frequency: 50 Hz
  • Voltage / no load /: 19 V
  • Welding current: 10 - 160 A
  • Electrodes: 1.5 - 4.00 mm
  • Duration of work 100%: 70 А
  • Duration of work 60%: 90 А
  • Duration of work 30%: 160 А



Technical specifications



Gross Weight, kg: 6.125
Net Weight, kg: 5.513
