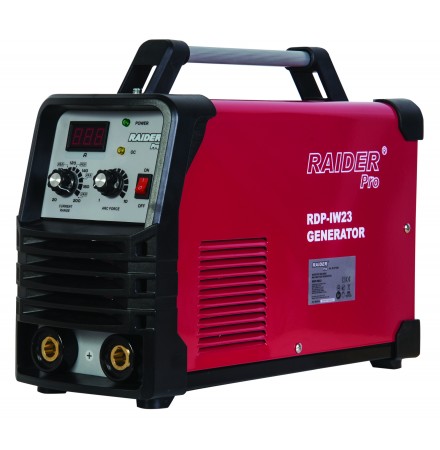

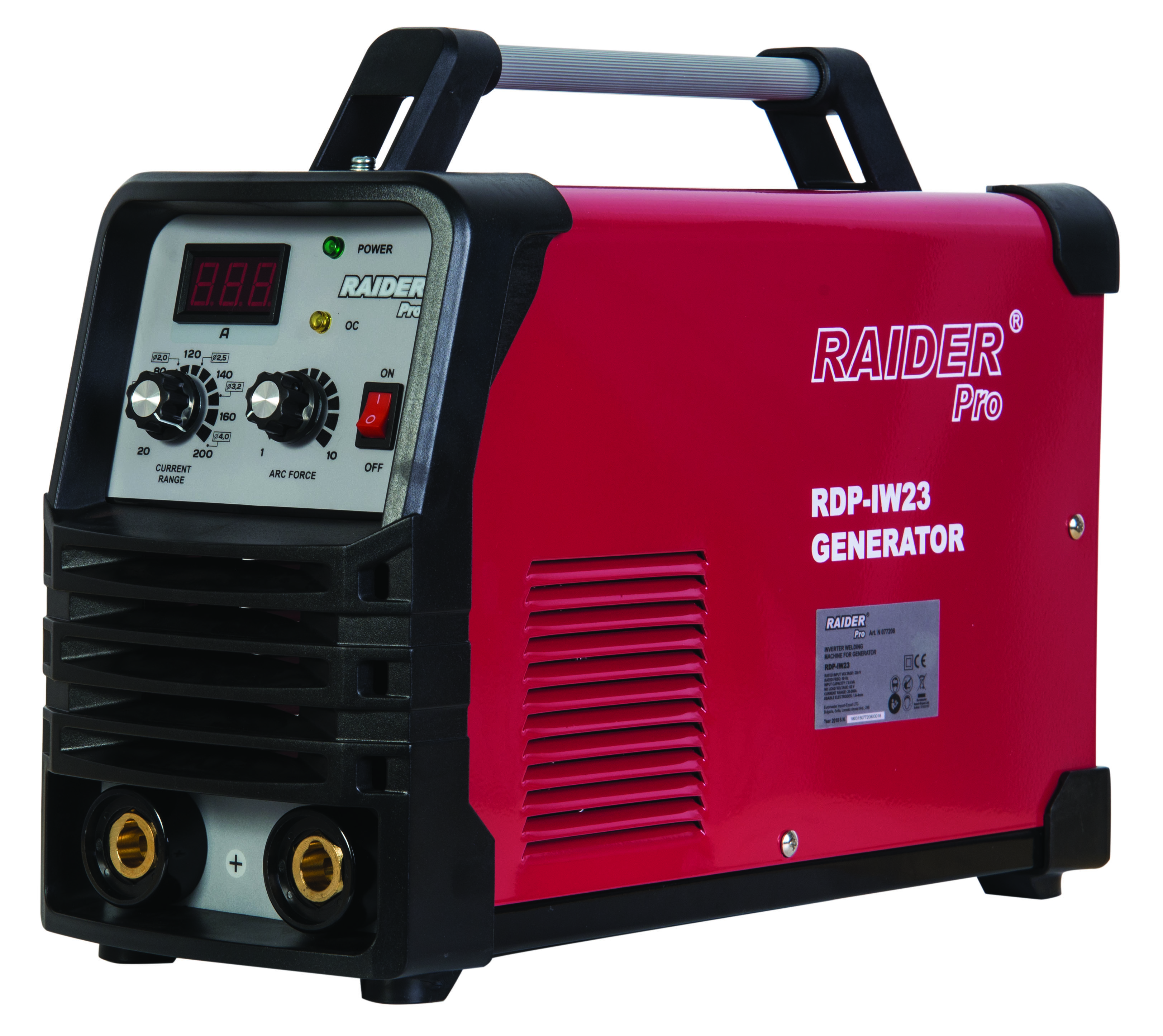

Welding Inverter Machine For Generator Powering

Raider RDP-IW23

Art. № 077208

• The machine can be powered by a generator

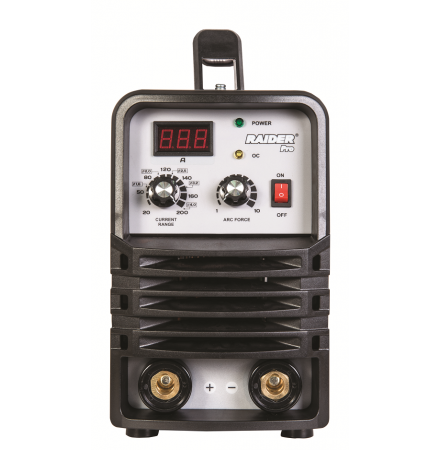

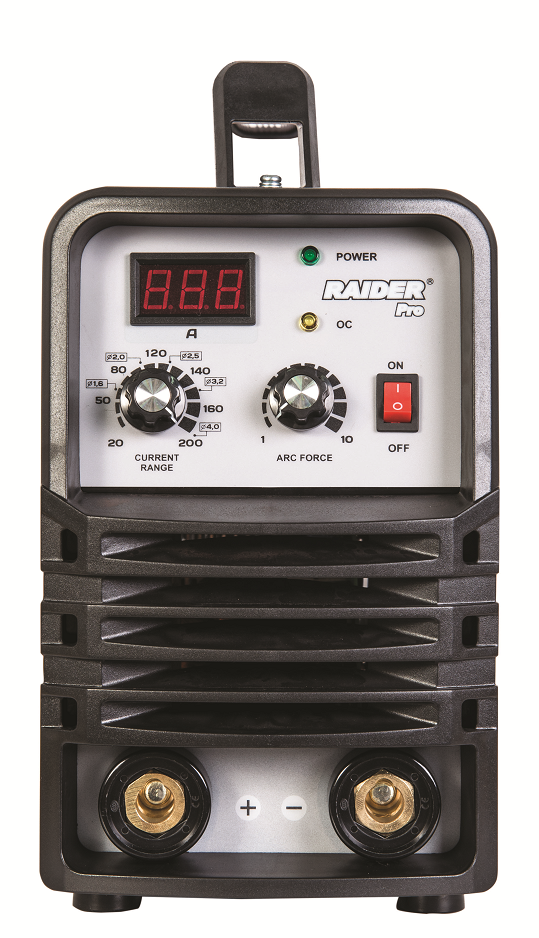

• Indicator for overheating
• Power indicator
• Welding current display
• Welding current adjustment
• Arc force regulator
• Arc force on/off switch

  • Power supply
  • Usable electrodes diameter
  • Output current range
  • No-Load Voltage
  • Power supply
  • Usable electrodes diameter
  • Output current range
  • No-Load Voltage

Description

  • Rated voltage: 230 V AC
  • Frequency: 50 Hz
  • Rated input power capacity: 7.8 kVA
  • No-load voltage: 62 V
  • Output current: 20-200 A
  • Electrodes: 1.6-4 mm
  • Rated output voltage: 28 V
  • Duty cycle: 60 %
  • Efficiency: 0.85 %
  • Power factor: 0.85 cos φ

Equipment:

  • Welding inverter machine for generator powering
  • Electric holder cable 2.5 m
  • Earth clamp cable 1.5 m
  • Welding hammer chipping - with a wire brush



Technical specifications



Rated Voltage, V: 230
Frequency, Hz: 50
Rated Input Current, kVA: 7.8
No- load Voltage, V: 62
Output Current, A: 20-200
Electrode Size, mm: 1.6-4
Rated Output Voltage, V: 28
Продължителност на работа при 200A - 60%: 6 min. работа и за 4 min. защитата ще изключи за охлаждане /;
Продължителност на работа при 150A - 100%: Ще работи без прекъсване
Коефицент на полезно действие, %: 0.85
Power Factor: 0.85
Gross Weight, kg: 4.900
Net Weight, kg: 3.630




Equipment



Инверторен заваръчен апарат: RDP-IW23
Заваръчен кабел с ръкохватка за електроди: 2.5 m
Кабел с щипка маса: 1.5 m
Чукче четка: 1 бр.
